87913SAE法兰9000PSI
87913 SAE法兰9000PSI

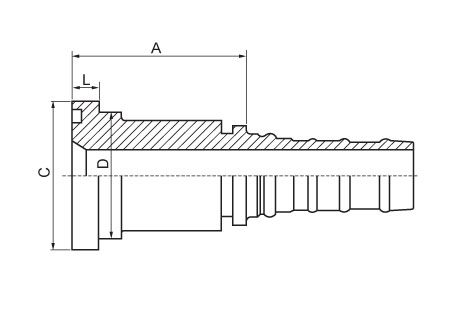

| 代号 | 法兰型号 | 软管 | 尺寸 | ||||
|---|---|---|---|---|---|---|---|
| 公称内径 | 标号 | A | C | D | L | ||
| 87913-12-12 | 3/4" | 20 | 12 | 58.5 | 41.3 | 31.7 | 14.3 |
| 87913-16-12 | 1" | 20 | 12 | 63 | 47.6 | 38 | 14.3 |
| 87913-16-16 | 1" | 25 | 16 | 64.4 | 47.6 | 38 | 14.3 |
| 87913-20-16 | 1.1/4" | 25 | 16 | 66.8 | 54 | 43 | 14.3 |
| 87913-20-20 | 1.1/4" | 32 | 20 | 73.8 | 54 | 43 | 14.3 |
| 87913-24-20 | 1.1/2" | 32 | 20 | 80.6 | 63.5 | 50.8 | 14.3 |
| 87913-24-24 | 1.1/2" | 40 | 24 | 80.7 | 63.5 | 50.8 | 14.3 |
