GT-PK英锥管内螺纹三通

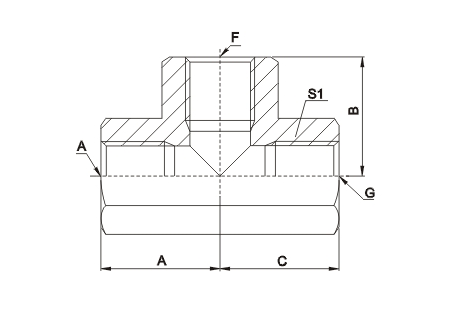

GT-PK 英锥管内螺纹三通
| 代号 | 螺纹 | 尺寸 | |||||
|---|---|---|---|---|---|---|---|
| E | F | G | A | B | C | S1 | |
| GT-02PK | Rc1/8"X28 | Rc1/8"X28 | Rc1/8"X28 | 20 | 20 | 20 | 16 |
| GT-04PK | Rc1/4"X19 | Rc1/4"X19 | Rc1/4"X19 | 22.5 | 22.5 | 22.5 | 19 |
| GT-06PK | Rc3/8"X19 | Rc3/8"X19 | Rc3/8"X19 | 26 | 26 | 26 | 24 |
| GT-08PK | Rc1/2"X14 | Rc1/2"X14 | Rc1/2"X14 | 31 | 31 | 31 | 27 |
| GT-12PK | Rc3/4"X14 | Rc3/4"X14 | Rc3/4"X14 | 34 | 34 | 34 | 33 |
| GT-16PK | Rc1"X11 | Rc1"X11 | Rc1"X11 | 42 | 42 | 42 | 41 |
| GT-20PK | Rc1.1/4"X11 | Rc1.1/4"X11 | Rc1.1/4"X11 | 48 | 48 | 48 | 50 |
| GT-24PK | Rc1.1/2"X11 | Rc1.1/2"X11 | Rc1.1/2"X11 | 53 | 53 | 53 | 60 |
| GT-32PK | Rc2"X11 | Rc2"X11 | Rc2"X11 | 62 | 62 | 62 | 70 |
