软管接头

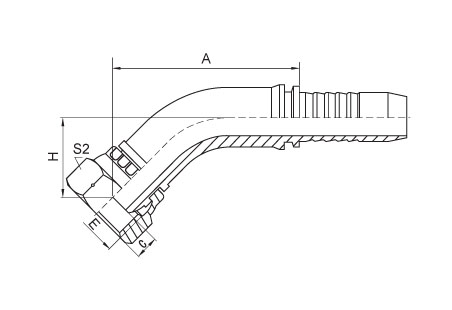

2214145° 英管内螺纹球面

22141 45° 英管内螺纹球面

代号 螺纹 E 软管 尺寸
公称内径 标号 A C H S2
22141-02-04 G1/8"X28 6 04 43.7 2 21.6 14
22141-04-03 G1/4"X19 5 03 41.3 4 20.4 19
22141-04-04 G1/4"X19 6 04 43.7 4 21.6 19
22141-06-05 G3/8"X19 8 05 46.2 5 22.9 22
22141-06-06 G3/8"X19 10 06 48.1 5 23.9 22
22141-06-08 G3/8"X19 12 08 60.4 5 25.4 22
22141-08-08 G1/2"X14 12 08 61.8 6 26.8 27
22141-08-10 G1/2"X14 16 10 73 6 29 27
22141-10-10 G5/8"X14 16 10 73.7 8 28.9 30
22141-10-12 G5/8"X14 20 12 79.8 8 32.5 30
22141-12-10 G3/4"X14 16 10 70.4 9.5 29.6 32
22141-12-12 G3/4"X14 20 12 80.6 9.5 33.2 32
22141-16-12 G1"X11 20 12 81.6 11 33.5 41
22141-16-14 G1"X11 22 14 83.3 11 33 41
22141-16-16 G1"X11 25 16 89.2 11 35 41
22141-08-04T G1/2"X14 6 04 43.9 6 23.8 27
22141-08-08T G1/2"X14 10 06 42.5 6 18.2 27
22141-12-08T G3/4"X14 12 08 63.2 9.5 28.3 32
22141-20-16T G1.1/4"X11 25 16 91.4 9.1 37.1 50
22141-20-20W G1.1/4"X11 32 20 102.9 10 41.2 50
22141-24-24W G1.1/2"X11 40 24 119.8 11.5 49 55
22141-32-32W G2"X11 50 32 137.4 15 53 70
注:1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 22142-XX-XX.
