过渡接头

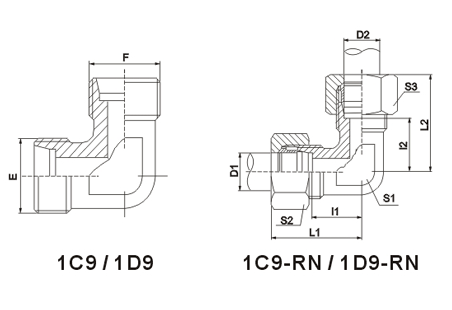

1D990° 弯曲接头
1D9 90° 弯曲接头
| 代号 | 螺纹 | 管子外径 | 尺寸 | 压力等级 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| E | F | D1 | D2 | 11，l2 | L1,L2 | S1 | S2,S3 | ||||
| 1D9-14 | M14X1.5 | M14X1.5 | 6 | 6 | 16 | 31 | 12 | 17 | 63重系列 | ||
| 1D9-16 | M16X1.5 | M16X1.5 | 8 | 8 | 17 | 32 | 14 | 19 | |||
| 1D9-18 | M18X1.5 | M18X1.5 | 10 | 10 | 17.5 | 34 | 17 | 22 | |||
| 1D9-20 | M20X1.5 | M20X1.5 | 12 | 12 | 21.5 | 38 | 17 | 24 | |||
| 1D9-22 | M22X1.5 | M22X1.5 | 14 | 14 | 22 | 40 | 19 | 27 | |||
| 1D9-24 | M24X1.5 | M24X1.5 | 16 | 16 | 24.5 | 43 | 24 | 30 | 40重系列 | ||
| 1D9-30 | M30X2 | M30X2 | 20 | 20 | 26.5 | 48 | 27 | 36 | |||
| 1D9-36 | M36X2 | M36X2 | 25 | 25 | 30 | 54 | 36 | 46 | |||
| 1D9-42 | M42X2 | M42X2 | 30 | 30 | 35.5 | 62 | 41 | 50 | |||
| 1D9-52 | M52X2 | M52X2 | 38 | 38 | 41 | 72 | 50 | 60 | 31.5重系列 | ||
| 注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，1D9-30RN | |||||||||||
-
